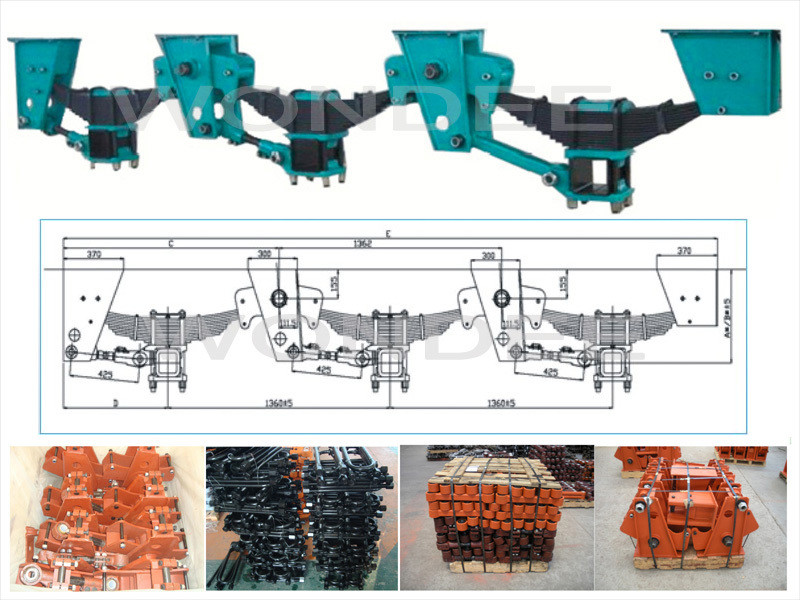

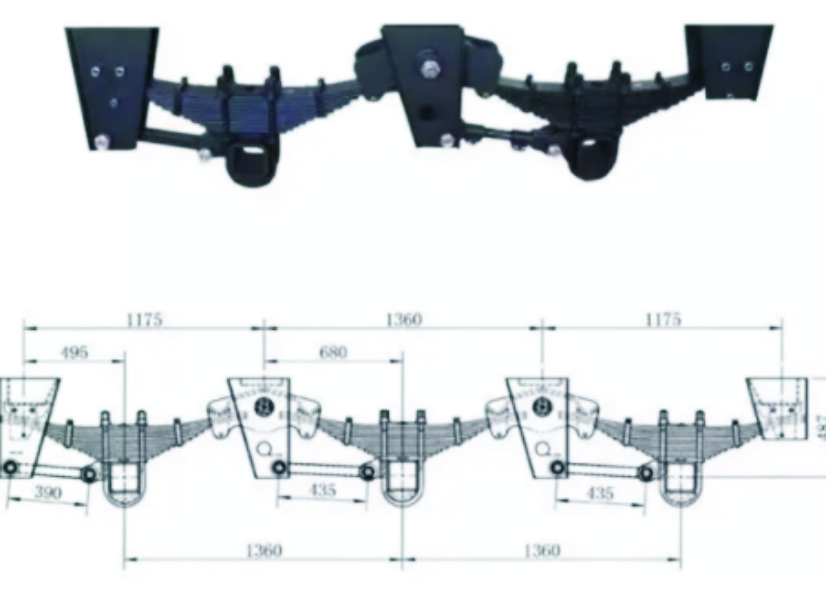

3 axle 2 ax;le germany Axle Trailer Suspension

Germany BPW Type trailer suspension tridem suspension

Specifications Size of German BPW type semi trailer suspension:

1. Capacity: 13T, 13*2T, 13*3T;

2. Hanger’s Thickness: 6mm, 8mm

3. Equalizer's thickness: 12mm

4. Equalizer Pin's Diameter: φ50mm, φ60mm, φ70mm

5. Leaf Spring Width: 90mm,100mm,120mm

6. Leaf Spring Thickness: 13mm;

7. Leaf Spring Leaves: 7,9,10,11,12,13,14pcs

8. Axle Beam: Square 150*150mm / Round 127mm;

9. Height :110-350mm

Production Process of German BPW type semi trailer suspension:
Raw Material→Cutting→Bending→Stamping→Welding→Shot Blasting→Painting→Inspection→Packing

Note:

1.Leaf spring size:100mm Width *12mm Thickness *12Pcs

2.Weight:1120kg (consist of 6 sets leaf spring)

3.Balance arm pin: 60 or 70

4.Thickness: 8mm, 10mm

5. Mount Height: 142 mm

6.Material: Q235

7.Certificate: ISO9001

8.Single-axle, double-axle, and 3-axle German type mechanical suspensions

9.Axle load capacity of 12ton, 14ton or 16tons.

10.Quantity and width of leaf spring and wheelbase is optional by your request;

11. Suitable for square 150mm axles, Φ127 round axle.

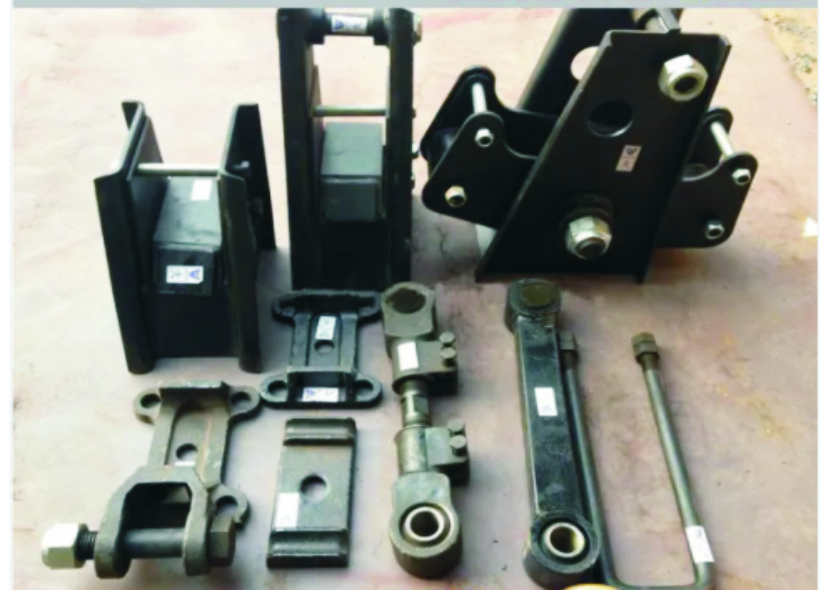

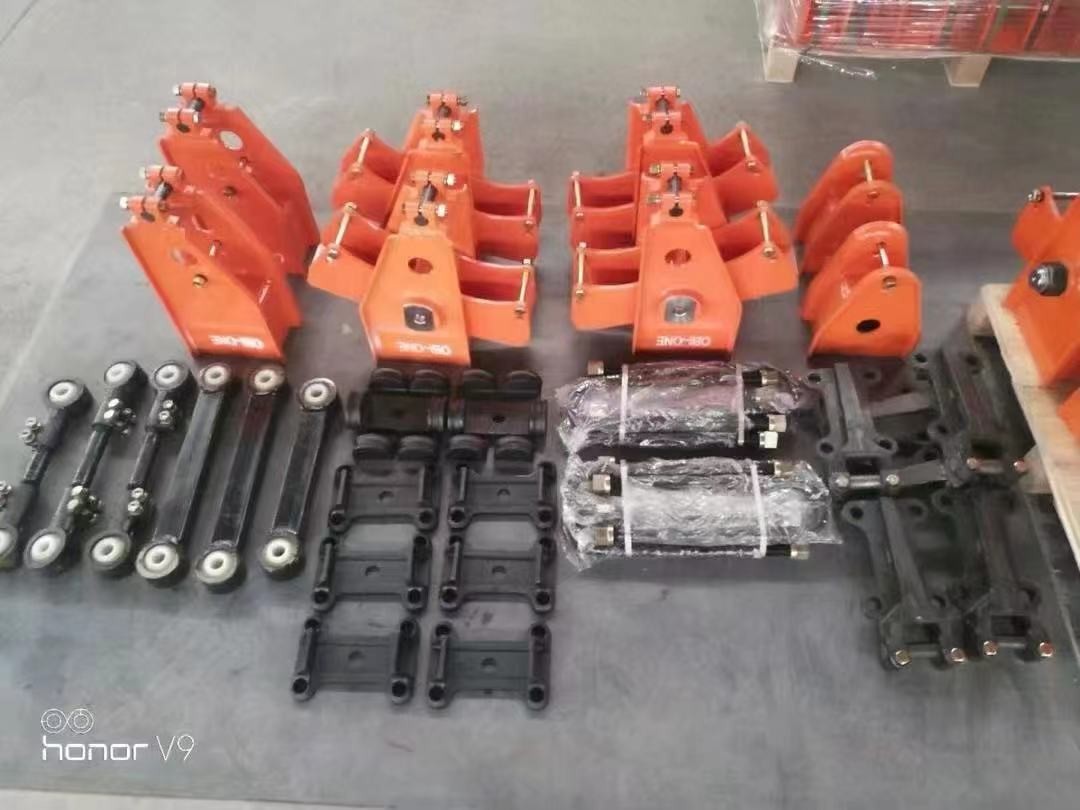

German BPW type semi trailer suspensionSpare Parts:

1.Front Hanger

2. Rear Hanger

3. Equalizer Hanger

4. Equalizer

5. Leaf Spring

6. Radius Rod Assembly

German BPW type semi trailer suspensionSpare Parts:

1.Front Hanger

2. Rear Hanger

3. Equalizer Hanger

4. Equalizer

5. Leaf Spring

6. Radius Rod Assembly
